*** PROTOTYPE FIRST ARTICLE ***  LAST 2 INJECTORS HAVE A SLIGHT LEAN

ALL SALES FINAL

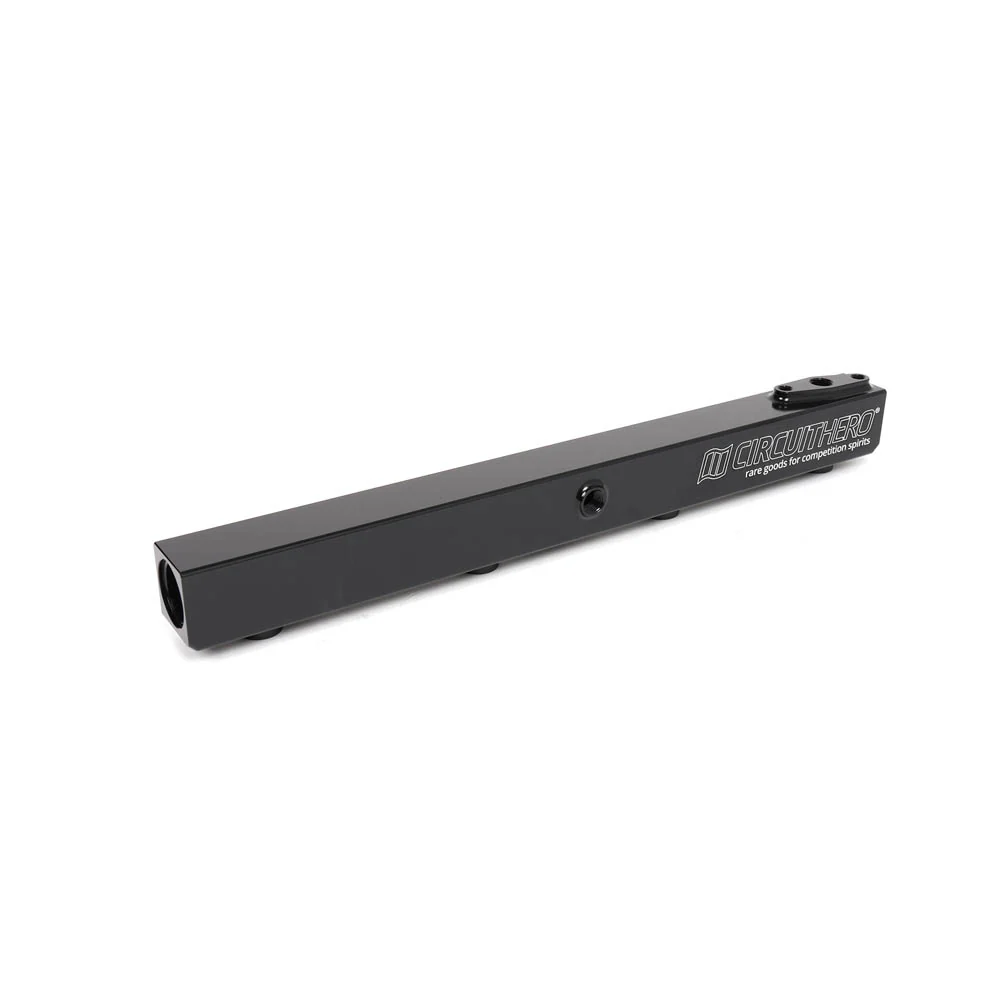

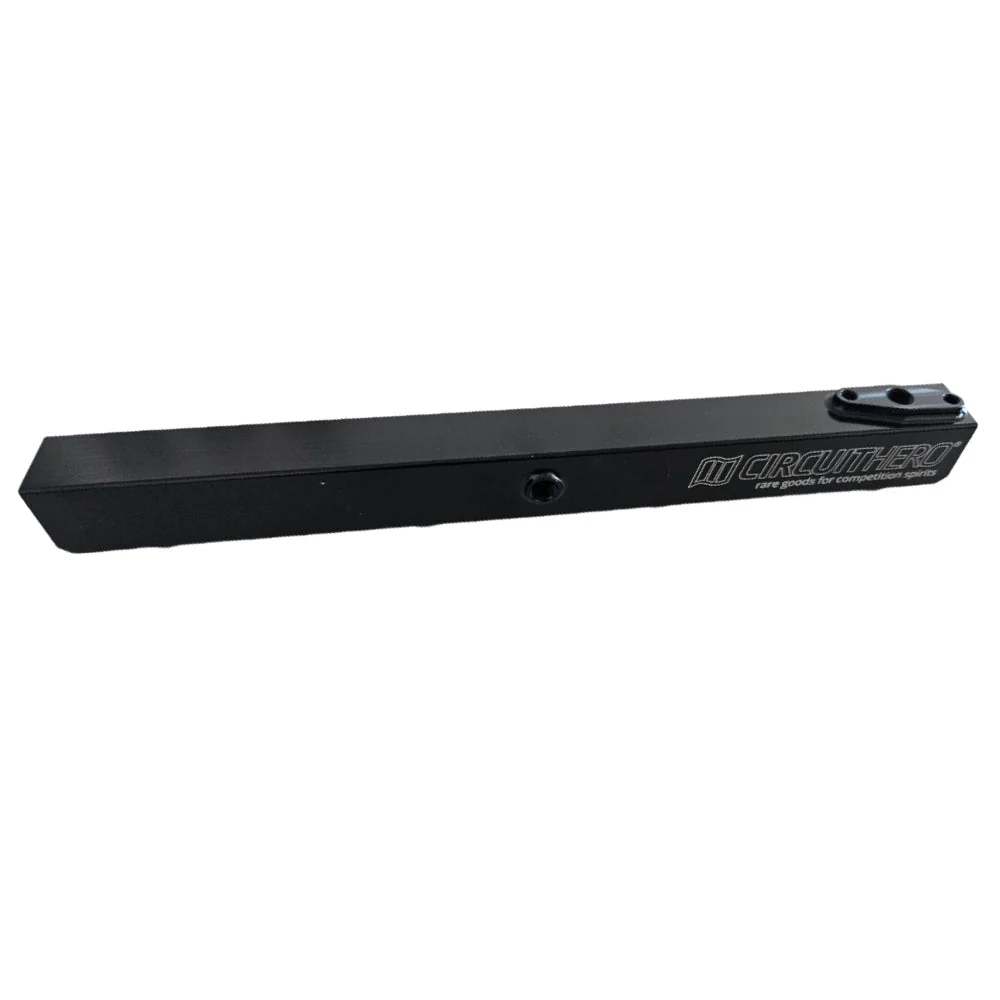

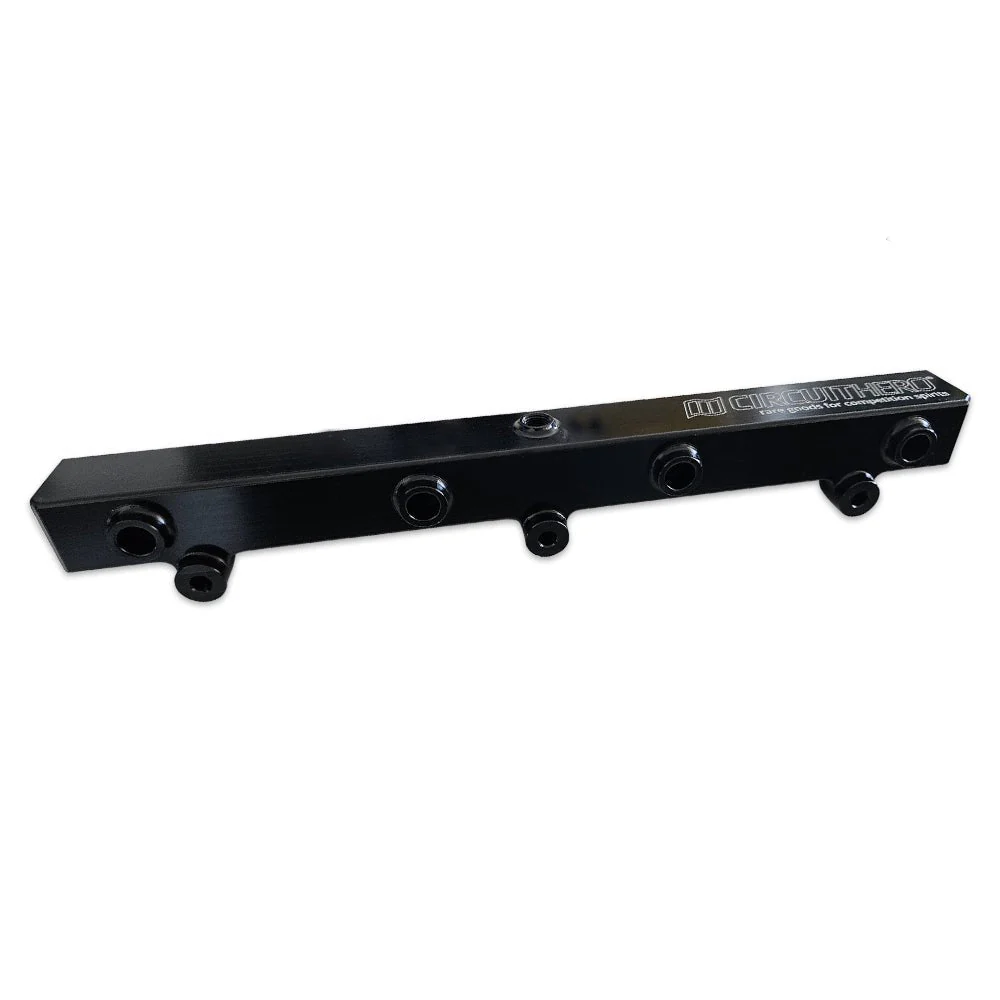

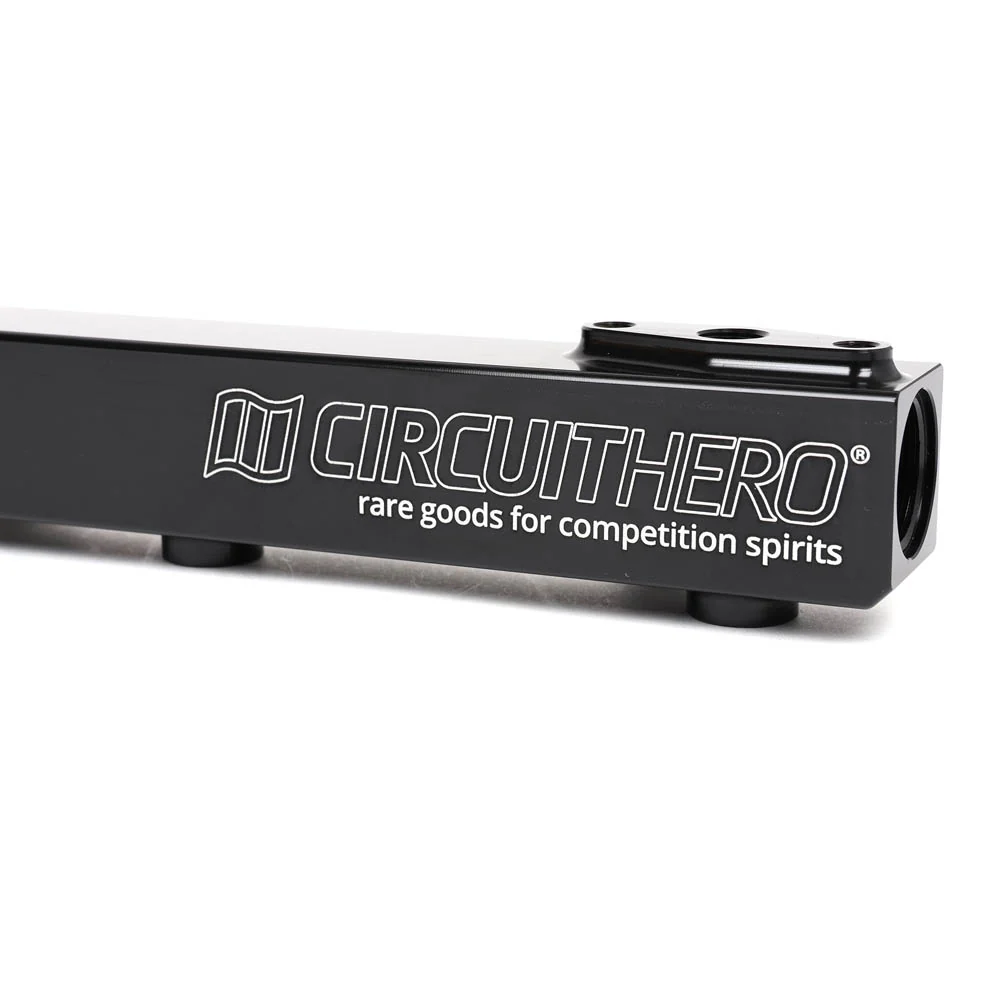

Whether upgrading for additional fuel delivery needs, to run upgraded fuel lines, or to simply clean up your engine bay, Circuit Hero's Aluminum Fuel Rail makes sure those needs are met.

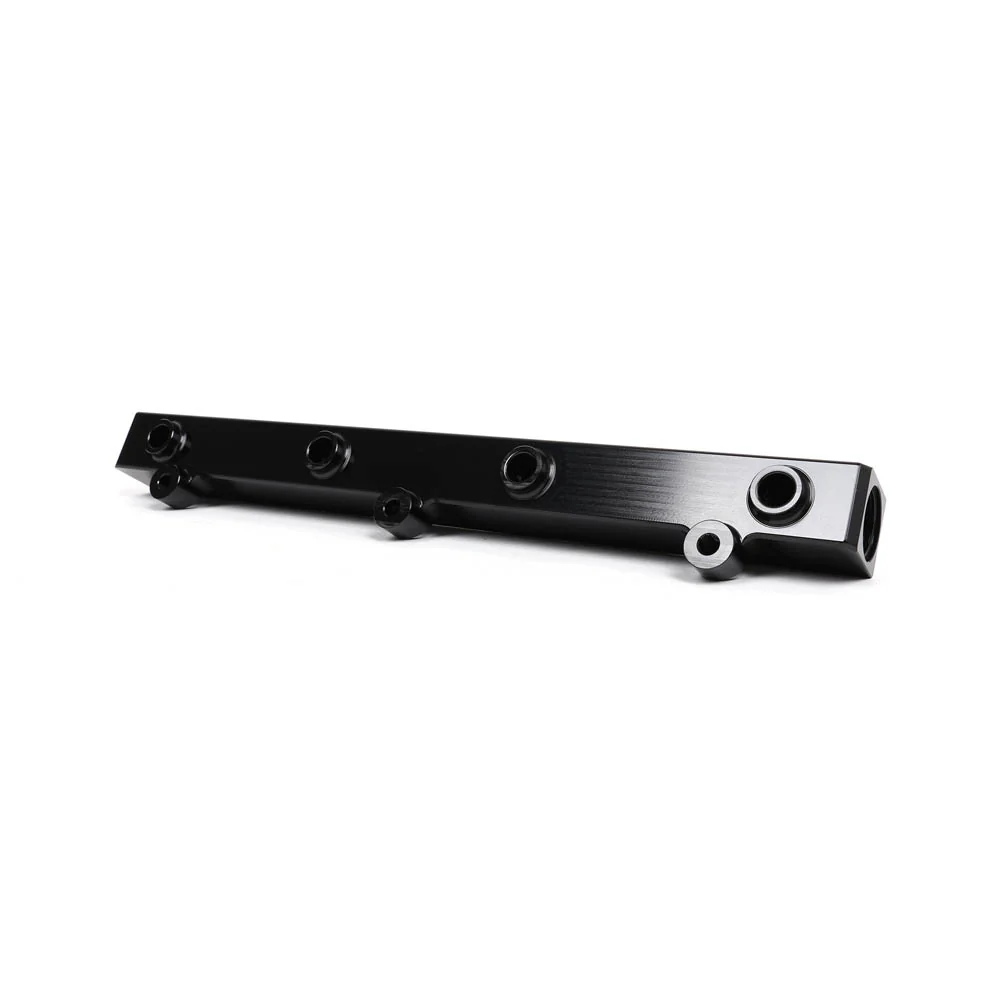

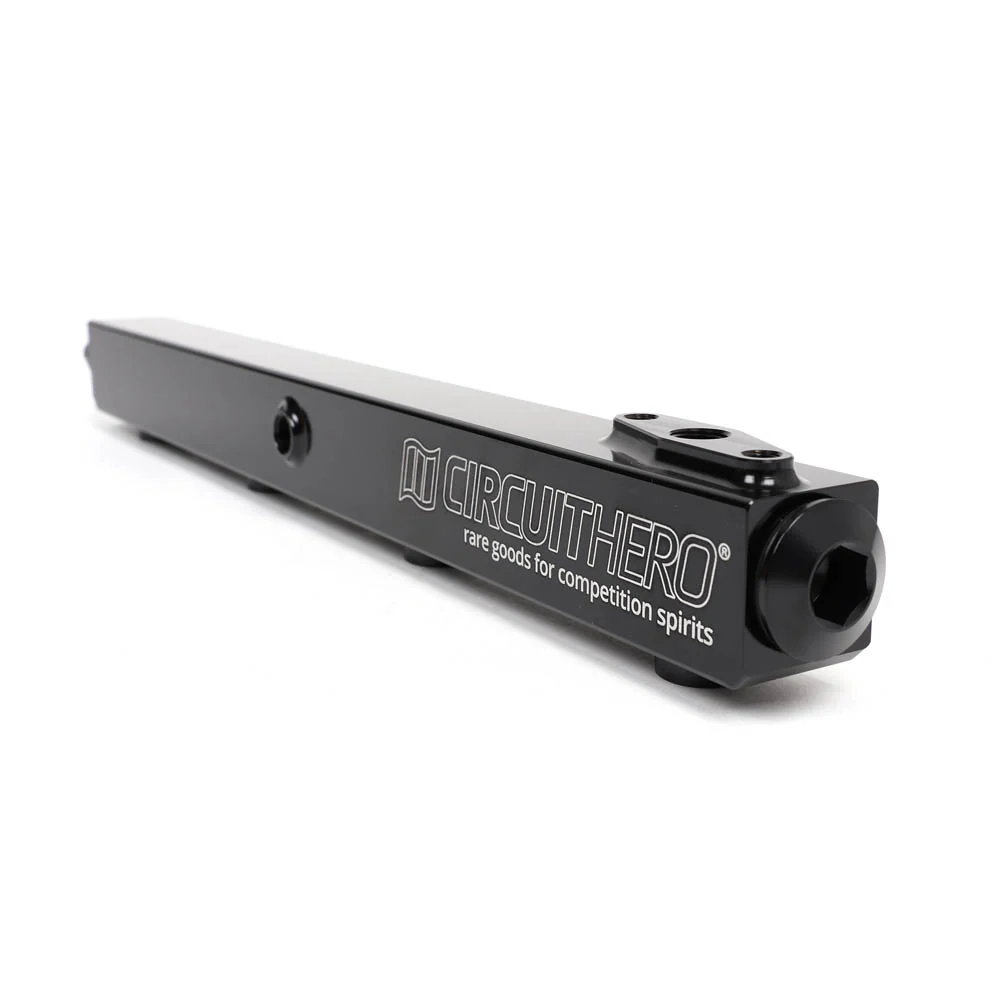

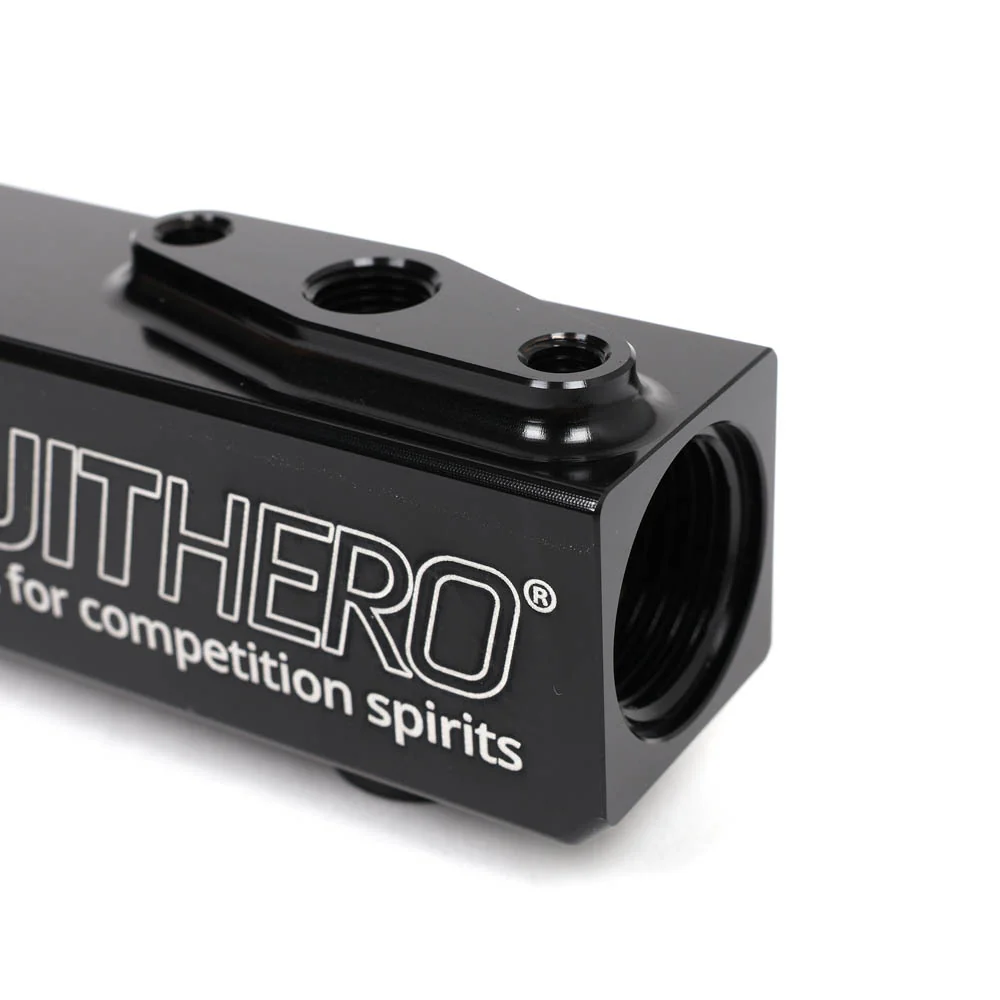

With it's factory FPR location and 1/8 NPT port on top, -10 O-ring boss (ORB) ports on both ends, there are a variety of ways you can set the rail up for your car and easily mount a fuel pressure gauge directly on the rail.

All of the ports can accept a -10 ORB fitting in the inlet(s) and outlet allowing you to run either the OEM B-Series FPR or use the supplied 1/8th NPT plug and use the side -10 ORB port.

Intake manifold not included.

Features

• B-Series Engine Fuel Rail
• Crafted From Billet 6061-T6 Aluminum
• 1/8 NPT Gauge Port

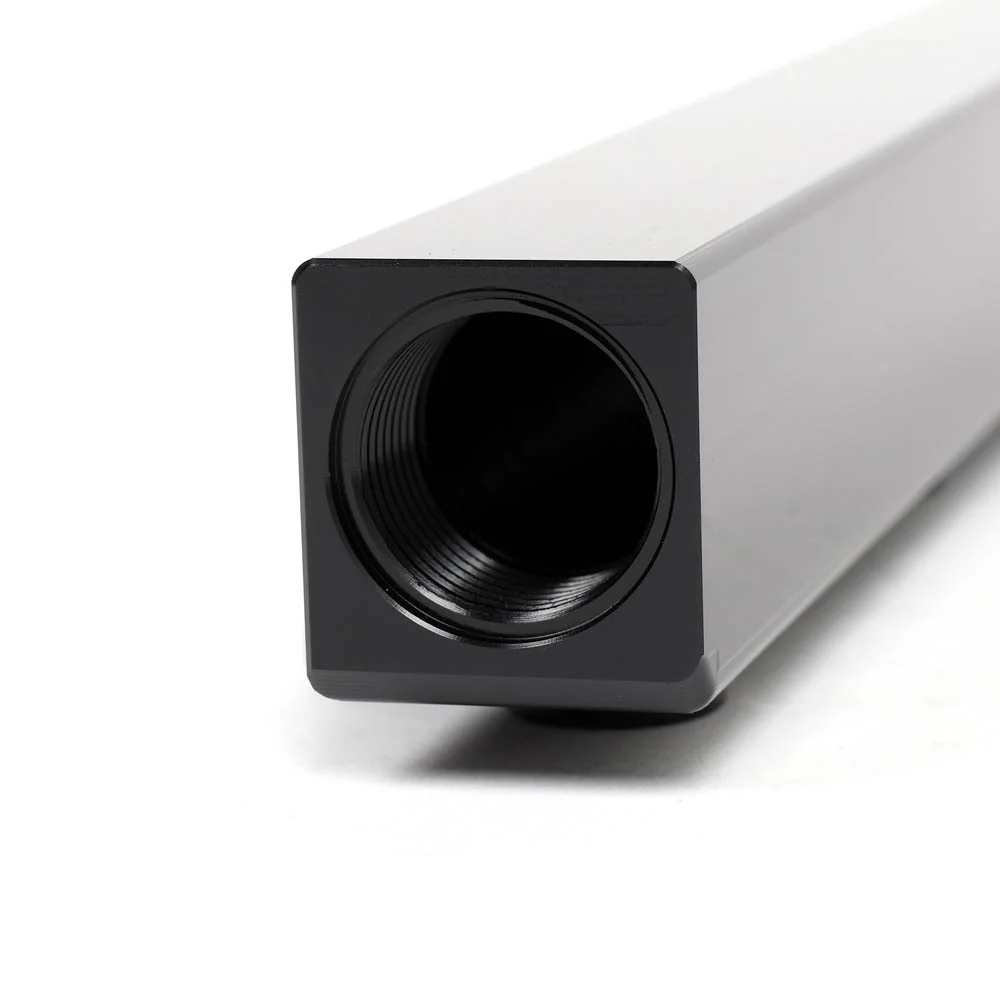

• Large 7/8" Bore for Feeding Over 1200HP
• -10 ORB End Ports for OEM, Side-Feed, or Return Setups

• Available in Black Finish
• Works with All B-Series
• Requires Custom AN Feed Line (Does not fit with OEM Banjo fitting)

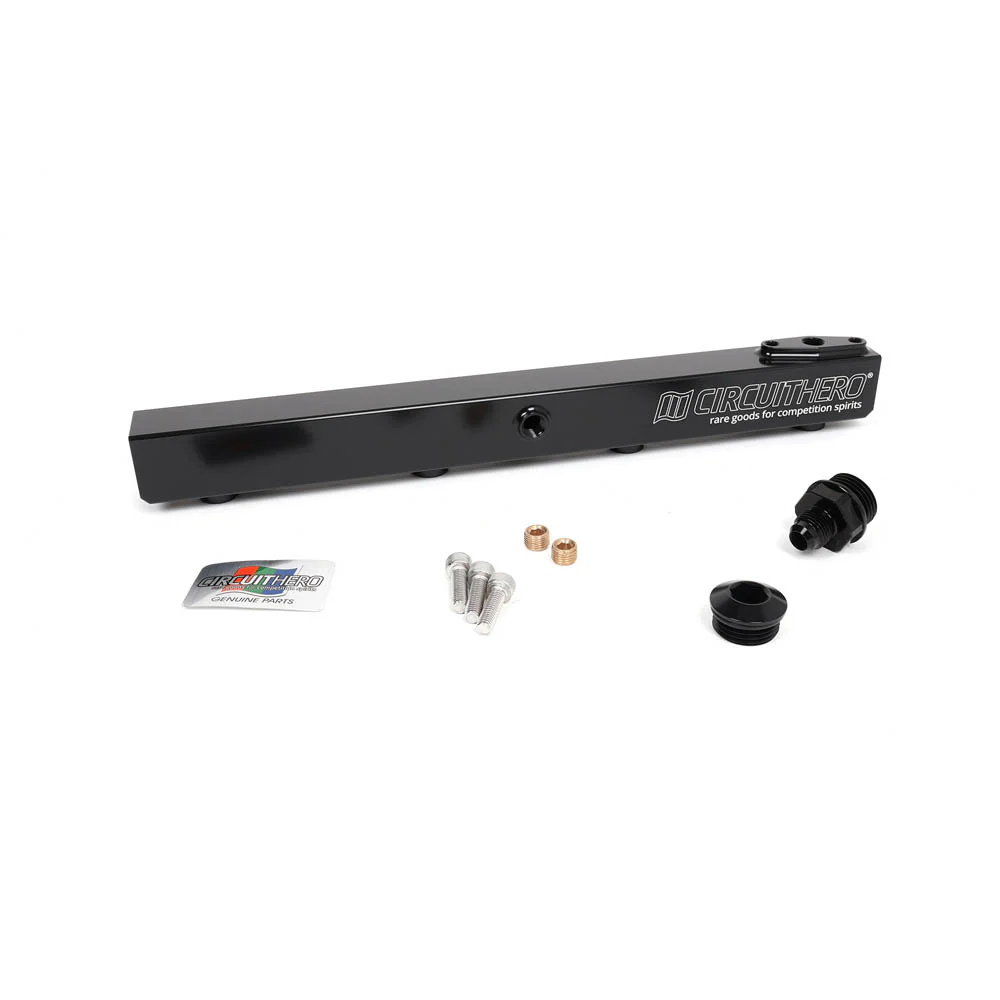

• Included Fittings
  • (3) Titanium Socket Head Cap Screw M6x1.0x20mm

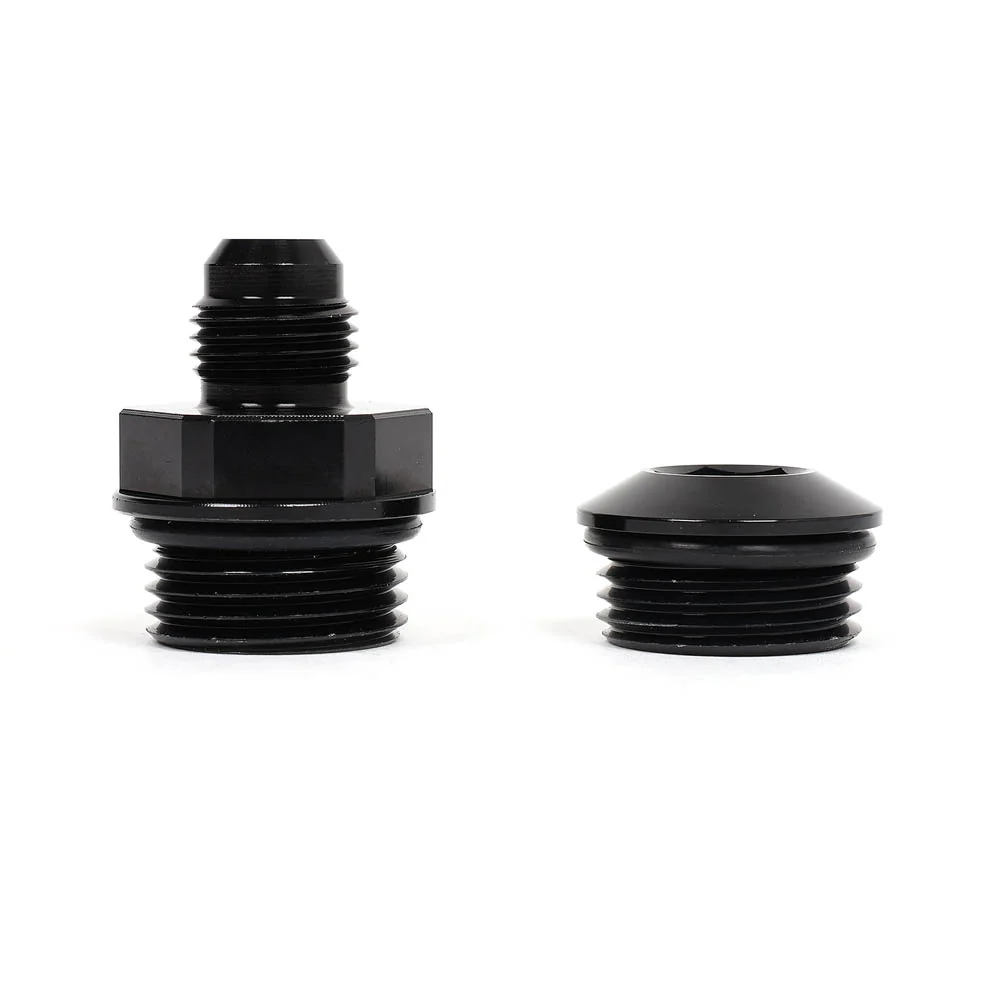

  • (1) -10 ORB Plug

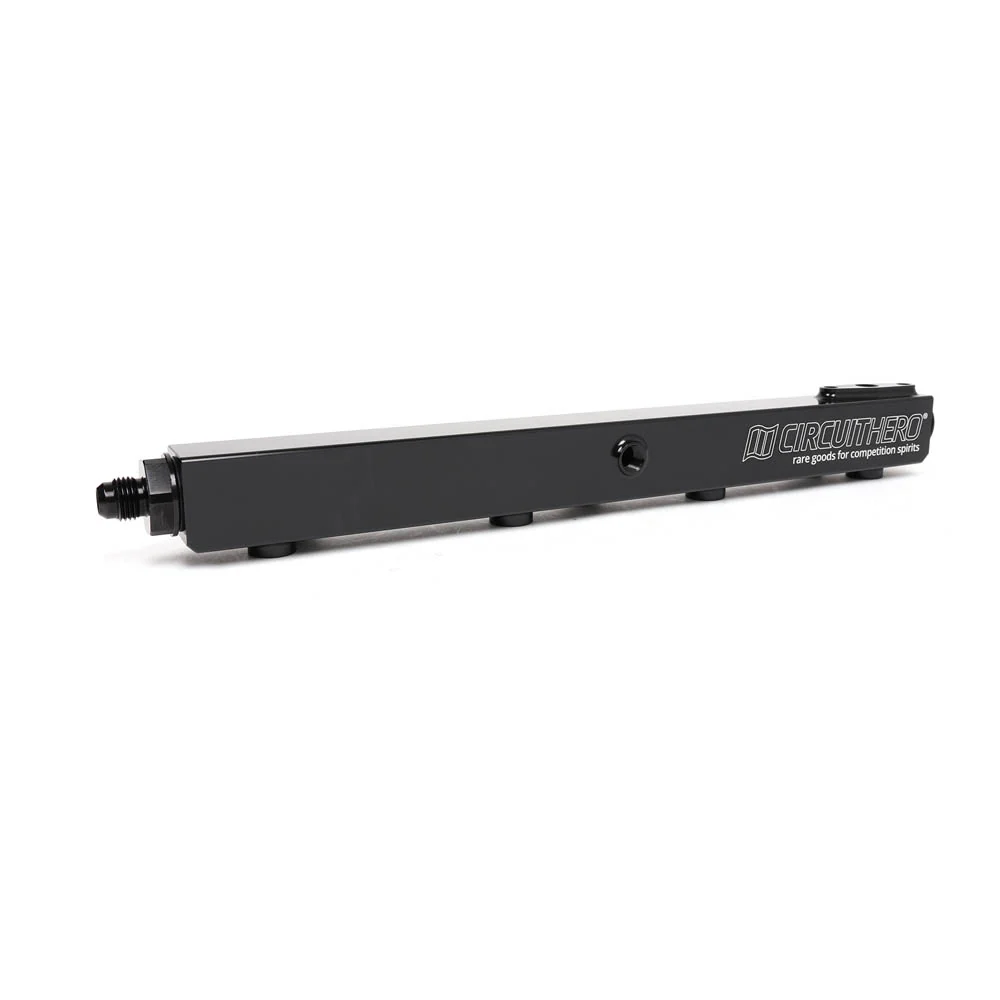

  • (1) -10 ORB to -6AN Adapter Fitting
  • (2) 1/8x27 NPT Pipe Plug

What intake manifolds is this rail compatible with?

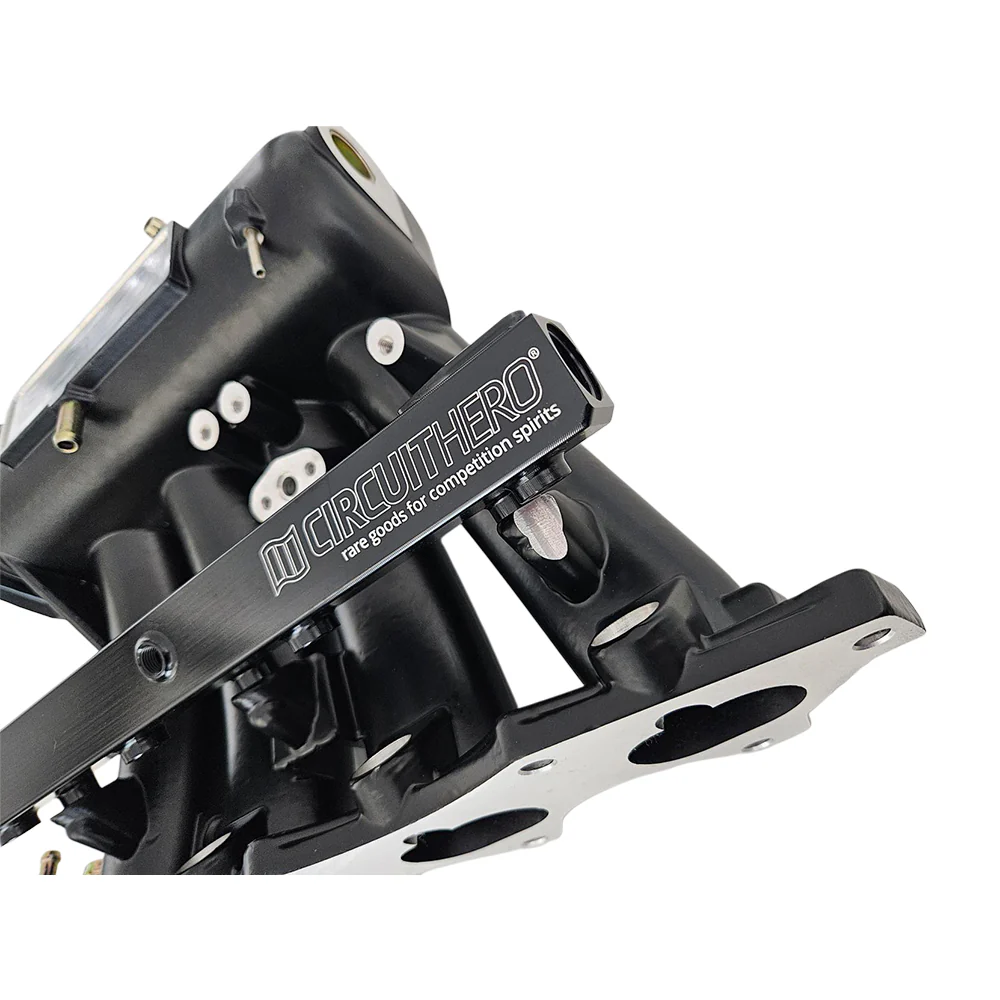

This rail has been shown to mount to the most popular OEM Honda B-Series intake manifolds equipped on the Honda B16 & B18 engines.

Is this fuel rail universal?

Since this fuel rail requires the use of an aftermarket fuel line, there is no specific or direct bolt-on application. It is a universal fuel rail that must use an aftermarket fuel line as it is not compatible with the OEM B-Series fuel line.
